Polymer Surge Arrester for Distribution

China Wortai IEC Standard Detachable Dropout Fuse Cutout with Zinc Oxide Arresters

Housing Material: Silicon rubber
Varistor Materials: Zinc Oxide
Color: Gray, Brown, Red
Brand name: Wortai
Product description: China Wortai IEC Standard Detachable Dropout Fuse Cutout with Zinc Oxide Arresters Detachable lightning arrester ca
INQUIRY

Products Description

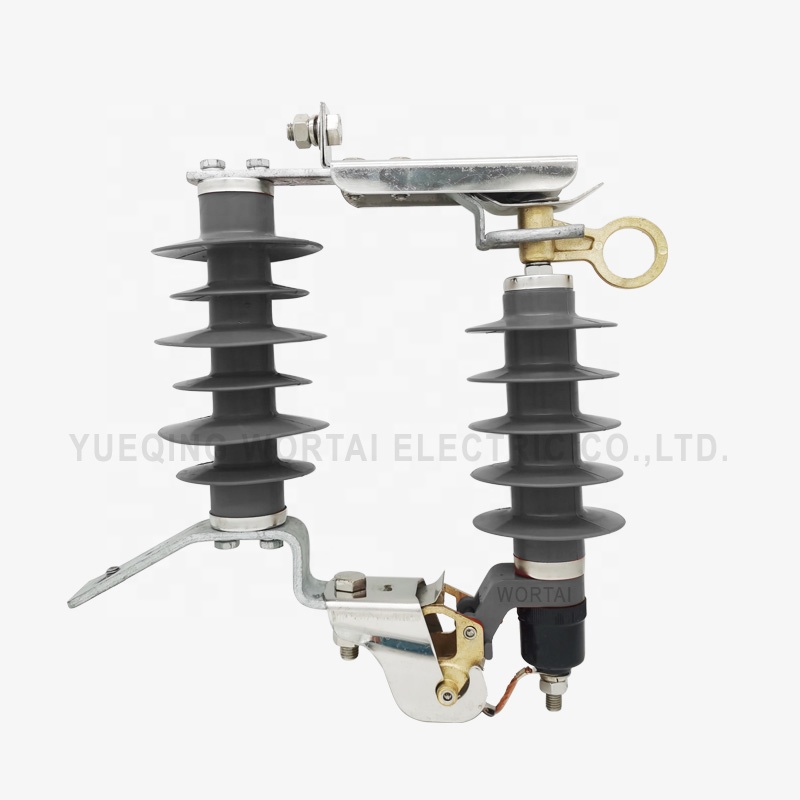

Wortai Detachable Dropout Fuse Cutout with Zinc Oxide Arresters
Detachable lightning arrester can also be called drop type zinc oxide lightning arrester.The distribution type Wortai zinc oxide arrester is retrofitted and installed on the drop mechanism of the drop fuse, so that the arrester can be detected, repaired and replaced with the help of the Wortai Telescopic hotstick under the condition of continuous power failure. We also added a disconnector. When the arrester break down, the power frequency short-circuit current automatically disconnects the grounding end of the disconnector, and it is easy for maintenance personnel to find and replace it in time.

Product Paramenters

	Rated Voltage(kV)	System Highest Voltage(KV)	MCOV (KV)	D.C. Reference Voltage KV	Lower Leakage Current	Switching Current Impulse (KV)	Lightning Current Impulse (KV)	2ms Rectangular Current Impulse Withstand A	4/10μs High Current Impulse Withstand KA
	KV(r.m.s)				KV	KV		A	kA
WT-YH5WS-10/30-TB	6	10	8	15	30	30	25.6	150	40
WT-YH5WS-17/50-TB	10	17	13.6	20	30	50	42.5	150	40
